HRV fiberglass filters embody the latest in fiberglass winding technology.

The HRV series filters are constructed from anticorrosive, nontoxic materials, and are engineered to withstand the high flow and pressures of today's residential and commercial systems. With the reinforced neck ring and solid lid closure this filter is the best fit for today's most demanding projects.

Features:

Easy Twisted Lock Lid with Removable Handles
Compression Fit Lid Sealing O-Ring

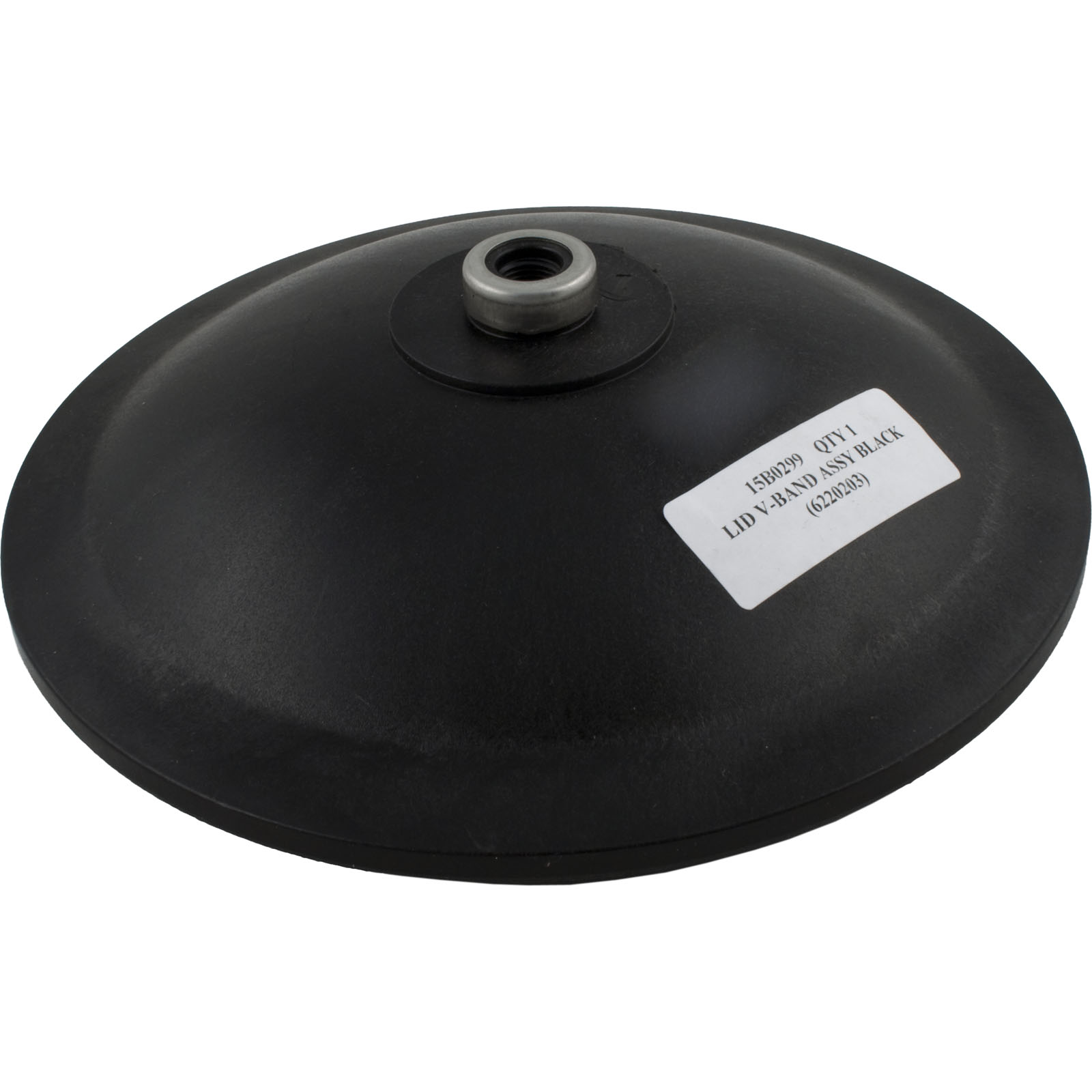

Solid Black Lid Closure
Inflow diffuser for even distribution of water flow across the filter bed
Pressure gauge
2" Multiport valve with 2" bulkhead connections (sold separately here: HRV Multiport Valve )
Fiberglass wound tank, UV and corrosion resistant
Hydraulically balanced laterals to maximize water flow and filtration
Manual drain
Large filter base for stable floor mounting
58 psi maximum operating pressure

New! HRV-R Series

Upgrading your filters just got w hole lot easeir! The HRV-R Series has all the same great features of our leading HRV Series, plus:

Bulkhead fittings and ports now re-designed to simply "slide-in" to replace old style TR filters

7.5" Port spacing matches the old Tritons

Bulkhead fitting half union threads match all the Pentair TR series multiports

All R series model #'s have a ###"R" at the end

Know someone who might like this? - Please, feel free to " Tell A Friend "

Item #	Description/Size	Qty Break	Price
22207188	HRV18, 18" Side Mount Fiberglass Filter, 2.2 sq ft, 43 gpm, 2" ports (being Discontinued- While supplies last), 22207188	1	$797.90
22207248	HRV24, 24" diameter Fiberglass Filter, 3.14 sq. ft., 63 GPM, 2" Side Mount Multiport bulkheads, NSF (Discontinued please use 22207248R), 22207248	1	$959.30
22207308	HRV30, 30" diameter Fiberglass Filter, 4.91 sq. ft., 98 GPM, 2" Side Mount Multiport bulkheads, NSF (Discontinued please use 22207308R), 22207308	1	$1,140.55
22207368	HRV36, 36" diameter Fiberglass Filter, 7.1 sq. ft., 142 GPM, 2" Side Mount Multiport bulkheads, NSF (While supplies last 5 in stock) (Discontinued please use 22207368R)	1	$1,968.81
22207248R	HRV24, 24" Side Mount Fiberglass Filter, 3.14 sq ft, 63 GPM, 2" ports, 7.5" port spacing, 22207248R	1	$1,040.07
22207308R	HRV30, 30" Side Mount Fiberglass Filter, 4.91 sq ft, 98 GPM, 2" ports, 7.5" port spacing, 22207308R	1	$1,478.15
22207368R	HRVR36, 36" Side Mount Fiberglass Filter, 7.1 sq ft, 142 GPM, 2" ports, 7.5" port spacing, 22207368R	1	$1,968.81

Features and Benefits:

Filament Wound Construction: Micron fiberglass filters embody the latest in fiberglass winding technology. Micron fiberglass vessels consist of an inner shell of fiberglass reinforced polyester resin wound over with fiberglass filament. Waterco's digitally controlled filament winding machine faultlessly winds continuous strands of high quality fiberglass filament under controlled tension filament to create a seamless one-piece vessel with refined consistency and superior quality. There are no weld, seams, or special tank linings that can corrode over time.

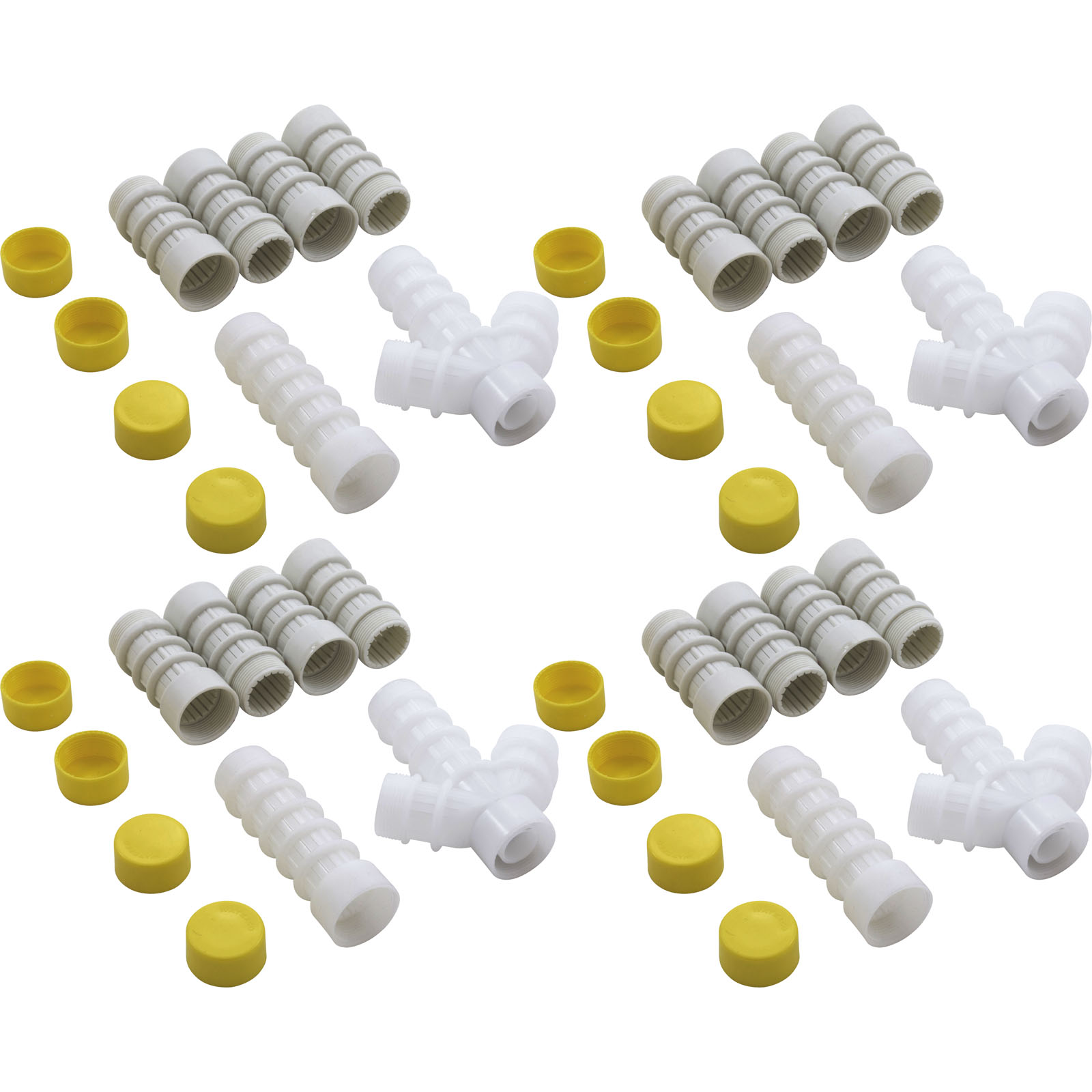

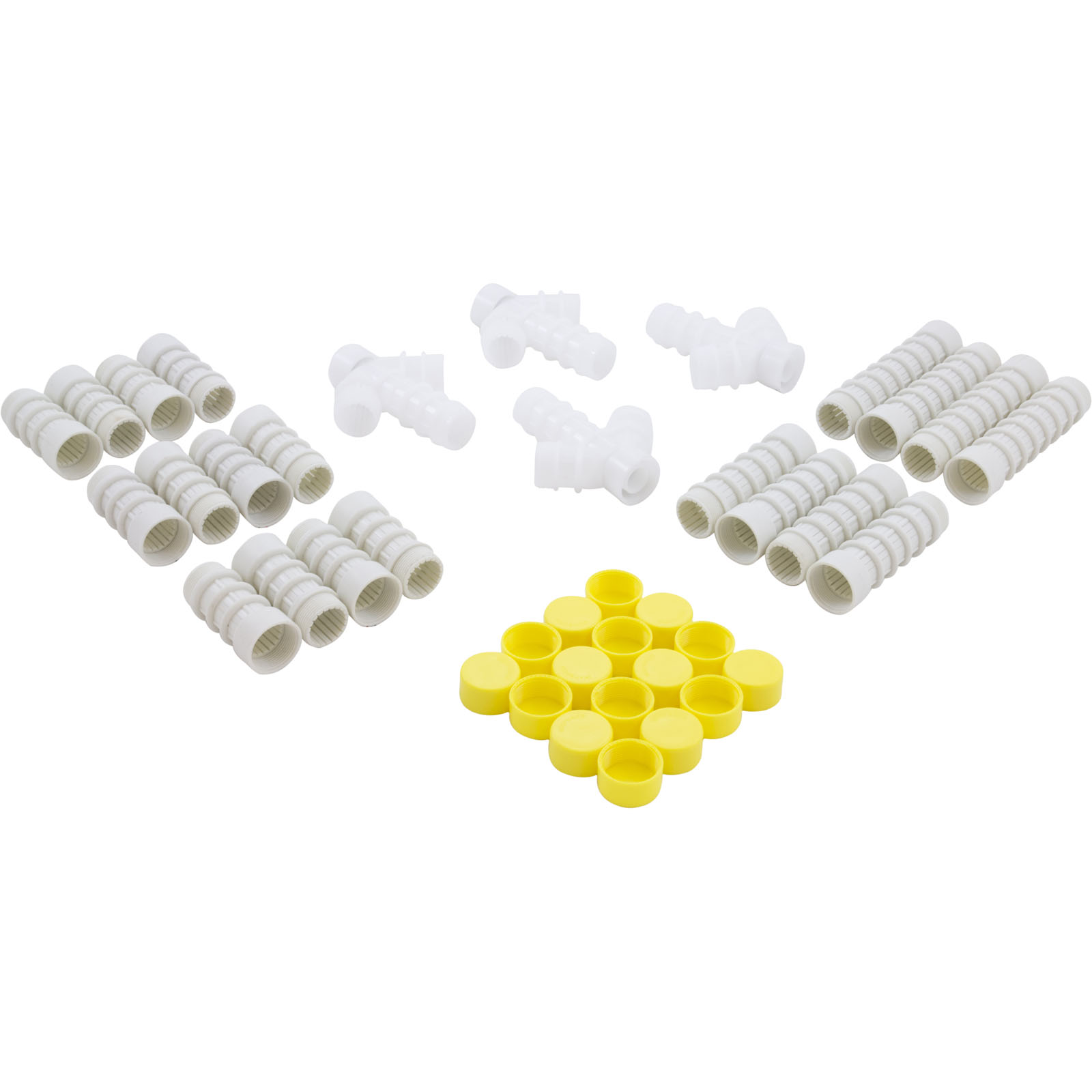

Micron "Fish Tail" Laterals - means better filtration : Conventional laterals have "dead areas" existing between the laterals, which compromises water flow through the filter bed - basically not utilizing much of the media, and causing increased velocity to the sparse lateral locations. The unique "fish tail" lateral configuration eliminates this problem by providing effective greater coverage of the filter bed. lower velocities for better filtration and a more balanced water flow.
Better backwashing, tooThe fish-tail underdrain design also improves backwashing - by more easily "liquifying" the media bed. This means faster and more complete removal of dirt while also using less water. Backwash time is significantly reduced, leading up to a 30% savings of backwash water - (even more when used in onjuntion with Multi-cyclone first astage filteration!)
Energy Savings The hydraulic efficiency of the fish-tail design saves energy, too! By reducing the time pumps have to run to backwash, and heaters have to run heating up the fill water which replaces the water backwashed down the drain.
Simple Maintenance: The effectiveness and efficiency of the filter is impaired by excessive build-up of debris, clogging the media, which will result in pressure build up and poor circulation. Cleaning the filter simply requires turning the filter's Multiport lever from the "filter" position to the "backwash" position, which reverses the flow of water in the filter, flushing the filter bed.
Fiberglass and polyester resin internal tanks, reinforced with a fiberglass filament wound outer shell result in a 16% stronger - 58 psi rating - vs. competitors at 50 psi
Reinforced side-wall where bulkhead fittings are located
Easier ServiceOver-sized 8" and 12" diameter top access ports on all models - some competitor models are only 6"
Superior reinforced neck ring
Simple "drop-and 'lock" or victaulic flange lids
All models NSF listed
Larger 3" bulkhead fittings on larger flow rate models available

Specifications

Click here to view the HRV-R Series Specifications Sheet.

Click here to view or purchase the HRV Multiport Valve

Click below to view parts diagram with product links:

•HRV-18 Parts Diagram

•HRV-24 Parts Diagram

•HRV-30 Parts Diagram

•HRV-36 Parts Diagram

• HRV Series Filter and Commercial Products Brochure
