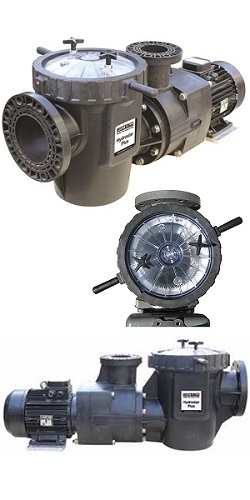

  • HydroStar Plus Commercial Pumps - 5 thru 15 HP -
  • Hydrostar Plus 7.5hp 3 Phase With Strainer 208-230/460v - 24607506A

Hydrostar Plus pumps incorporate the latest technology in design and construction to produce a high performance self priming pump. Constructed from an injection molded glass reinforced thermoplastic, its pump body is manufactured utilizing state of the art engineering plastic moulding for extra strength.

FEATURES:

  • UV stabilized glass filled polypropylene housing
  • Heavy duty IP55 weather proofed motor with 431 stainless steel shaft
  • Lid lock ring with ergonomic handles  simple removal & replacement of the lid without the use of additional tools
  • Clear polycarbonate strainer lid for quick inspection
  • 16 liter molded polypropylene strainer basket
  • Glass reinforced thermoplastic
  • Enclosed glass filled Noryl impeller for long lasting reliability
  • Integral support base for ease of mounting.
  • Self Priming
  • Quiet & Efficient
  • 6" flange suction ports
  • 4" flange discharge ports
  • 1/4" drain plug in volute for easy service and winterization


    Know someone who might like this? - Please, feel free to " Tell A Friend "


    Item # Description/Size Qty Break Price Quantity
    2460507A
    Hydrostar Plus 5 HP w/o Strainer 208/230/460V, Single Phase
    1 $3,239.35
    24605007A
    Hydrostar Plus 5 HP w/Strainer 208/230/460V, Single Phase
    1 $3,927.49
    2460757A
    Hydrostar Plus 7.5HP w/o Strainer 208/230/460V, Single Phase
    1 $4,927.99
    24607507A
    Hydrostar Plus 7.5HP w/Strainer 208/230/460V, Single Phase
    1 $5,124.79
    2460501A
    Hydrostar Plus 5 HP, w/o Strainer 208/230/460V, 3 Phase
    1 $2,591.34
    24605006A
    Hydrostar Plus 5 HP, w/Strainer, 208/230/460V, 3 Phase
    1 $3,211.35
    2460751A
    Hydrostar Plus 7.5 HP, w/o Strainer 208/230/460V, 3 Phase
    1 $5,105.57
    24607506A
    Hydrostar Plus 7.5 HP, w/Strainer, 208/230/460V, 3 Phase
    1 $6,002.50
    2461001A
    Hydrostar Plus 10 HP, w/o Strainer 208/230/460V, 3 Phase
    1 $4,316.04
    24610006A
    Hydrostar Plus 10 HP, w/Strainer, 208/230/460V, 3 Phase
    1 $5,265.26
    2461501A
    Hydrostar Plus 15 HP, w/o Strainer 208/230/460V, 3 Phase
    1 $4,321.54
    24615006A
    Hydrostar Plus 15 HP, w/Strainer, 208/230/460V, 3 Phase
    1 $5,001.75

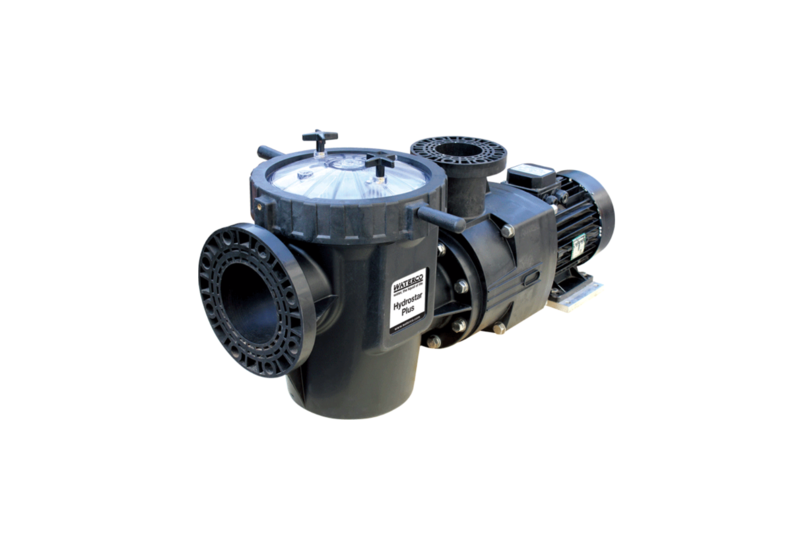

    HydroStar Plus Pumps

    Hydrostar Plus pumps are high performance corrosion resistant thermoplastic pumps. They incorporate the latest technology in design and construction to produce a superior self-priming pump! Designed for aquatic facilities, water parks and large commercial swimming pools, delivering high performance and precision!

    Constructed from an injection molded glass reinforced thermoplastic that possesses superior mechanical and chemical resistance! Its pump body is manufactured utilizing state of the art engineering plastic molding for extra strength. Its seamless one-piece consists of no welds or seams or special tank linings which can corrode or electrolyze. Its clear polycarbonate strainer lid enables an instant view of the strainer basket. Plus the pumps lid lock ring is equipped with ergonomic grip handles for easy removal & replacement.

    NOTE: Please look carefully at the item description when ordering. Hydrostar Plus Pumps and the high capacity, easy-access Hydrostar Pump Hair and Lint Assembly can be purchased separately - or in combination with each other.

    Part Number Description Diagram No. Qty. Image
    USM-FM96 MOTOR 5 HP 3 PHASE TEFC US MOTOR 1 1
    USM-FM97 MOTOR 7.5 HP 3 PHASE TEFC US MOTOR 1
    USM-FM98 MOTOR 10 HP 3 PHASE TEFC US MOTOR 1
    USM-FM99 MOTOR 15 HP 3 PHASE TEFC US MOTOR 1
    W32617 HYDROSTAR PLUS 5HP PUMP FOOT 2 2
    W32616 HYDROSTAR PLUS 7.5-15 HP PUMP FOOT 2
    00B0080 NUT 3/8-16 HEX 18-8 SS 3 4

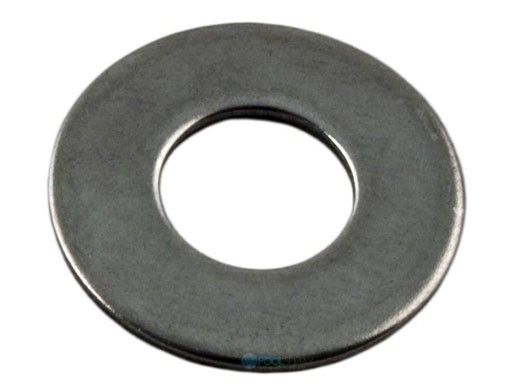

    6302181 WASHER 3/8 304 SS 4 9
    - BOLT 3/8-16 X 2-1/2" HEX SS 5 4
    63409380 BOLT 5/8-11 X 8" UNC HEX SS HYDROSTAR PLUS 6 4
    63409370 WASHER 5/8" FLAT SS304 HYDROSTAR PLUS 7 8
    63450660 KEY 0.1875 X 0.1875 X 30MM SS316 8 1
    63460 ADAPTER PLATE 5 HP HYDROSTAR PLUS 9 1
    634600 ADAPTER PLATE 7.5-15HP HYDROSTAR PLUS 1
    19B5035 LOCK WASHER 3/8" SPLIT TYPE 10 5
    W32546 BOLT 3/8-16 X 1-1/4" SS316 11 4
    634601 SEAL PLATE WITH INSERTS 5HP-15HP HYDROSTAR PLUS 12 1
    63401629 SEAL FOR NEW HYDROSTAR PLUS PUMP 13 1
    634605 O-RING ID283XCS9.5MM 14 1
    634614 IMPELLER 5HP/60HZ HYDROSTAR PLUS-WITH INSERT 15 1
    634612 IMPELLER 7.5HP/60HZ HYDROSTAR PLUS-WITH INSERT 1
    6346116 IMPELLER 10HP/60HZ HYDROSTAR PLUS-WITH INSERT 1
    634610 IMPELLER 15HP/60HZ HYDROSTAR PLUS-WITH INSERT 1
    6346021 DIFFUSER C/W NOZZLE 5HP 60 HZ HYDROSTAR PLUS 16 1
    6346022 DIFFUSOR C/W NOZZLE 7.5-10 HP 0.75" VANE HYDROSTAR PLUS 1
    634602 DIFFUSER / NOZZLE 15HP / 3PH 1885 RPM HYDROSTAR PLUS 1
    634651 BOLT 3/8 X 1" SOCKET HEAD CAP SS HYDRSTAR PLUS 17 1
    6340030 WASHER M6 FLAT 316SS 18 8
    645461 1/4" SPRING WASHER 19 8
    634652 BOLT HEX 1/4" UNC X 1.75" SS304 20 8
    634606 O-RING DIFFUSER NOZZLE HYDROSTAR PLUS BS353 21 1
    6346040 HYDROSTAR PLUS BODY W 4" DISCHARGE PORT 22 1
    W12773 WASHER LOCK 5/8" SS304 HYDROSTAR PLUS 23 4
    63409390 NUT 5/8" UNC BRASS NICKLE PLATED 24 4
    88B3064 FLANGE GASKET 6" X 0.125" 25 1
    19B5094 WASHER 3/4" FLAT SS 26 8
    19B5090 BOLT 3/4-10 X 2-1/2" SS 27 8

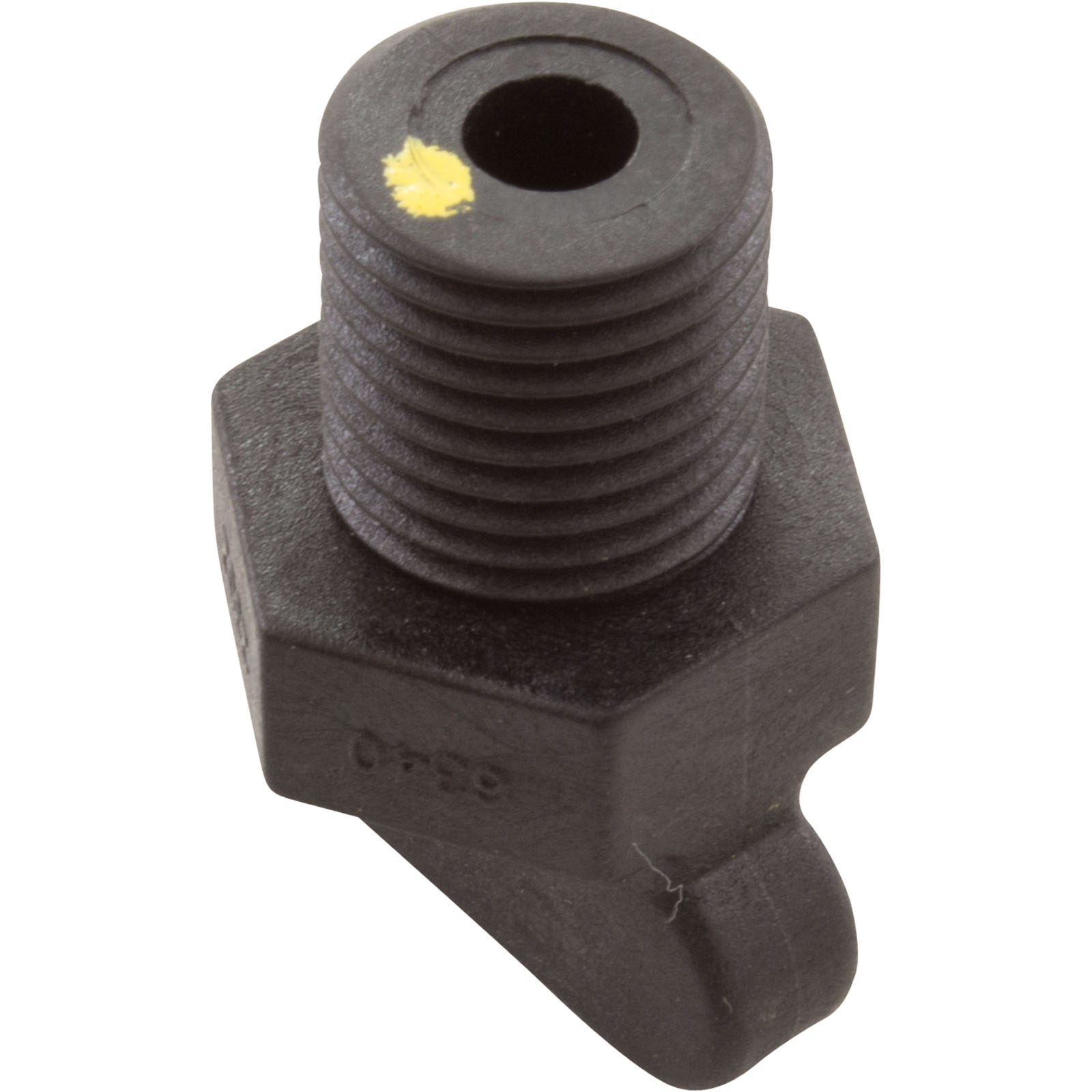

    63402302 DRAIN PLUG 0.25 INCH BSA 28 2

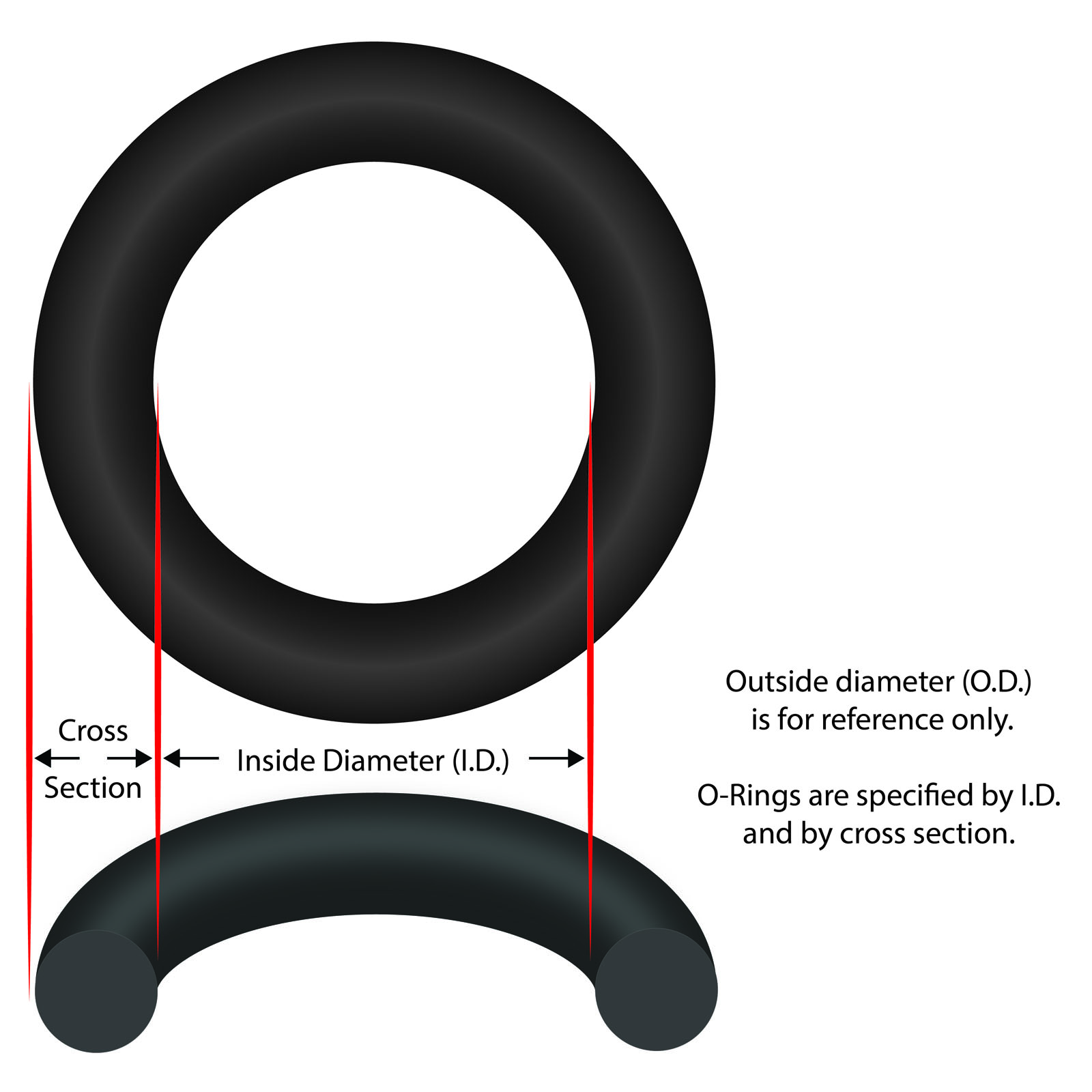

    620193 O-RING FOR DRAIN PLUG (63402301) 29 2

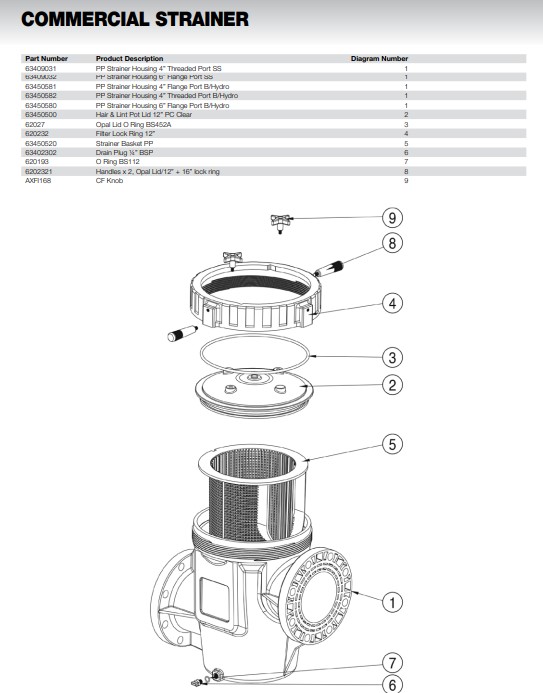

    63450580 COMMERCIAL STRAINER HOUSING ONLY 30 1
    63450520 COMMERCIAL STRAINER BASKET 31 1

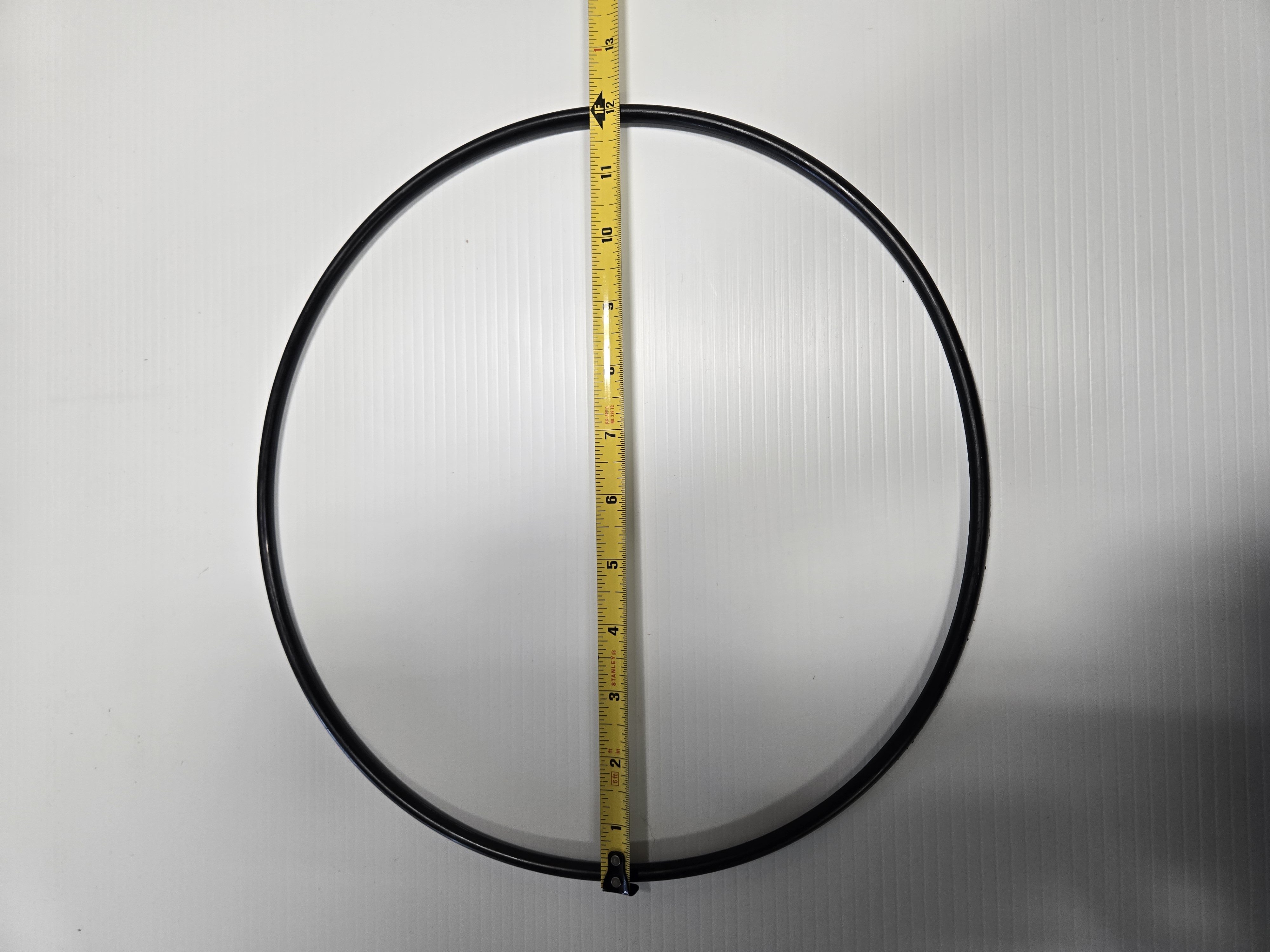

    62027 O-RING FOR HYDRO 5000 STRAINER LID 32 1

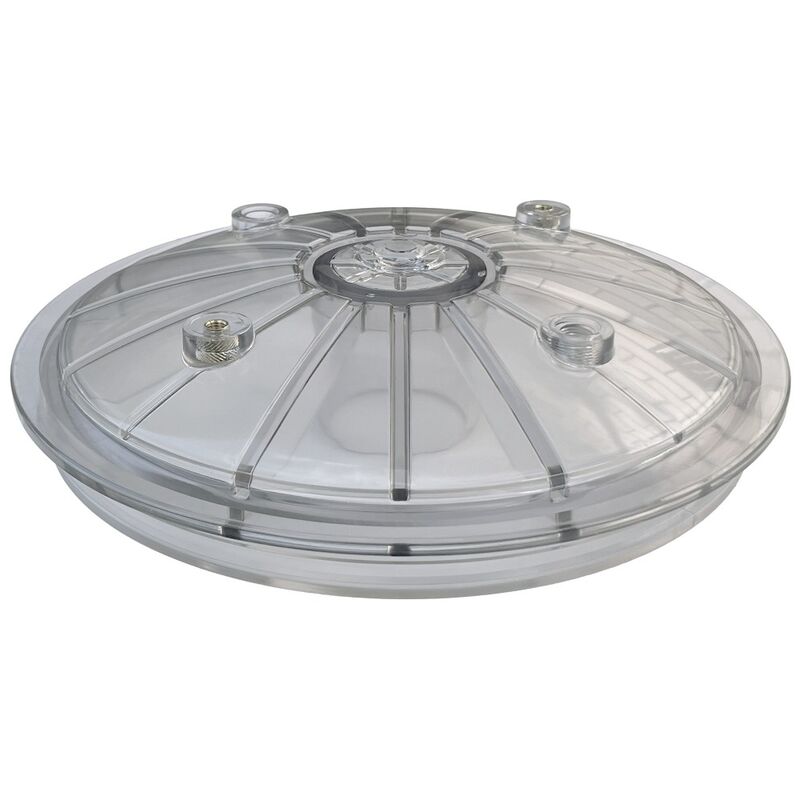

    63450500 LID 12" PC CLEAR HAIR & LINT POT 33 1
    W02629 KNOB FOR CLEAR OPAL LID (AXFI168) 34 2

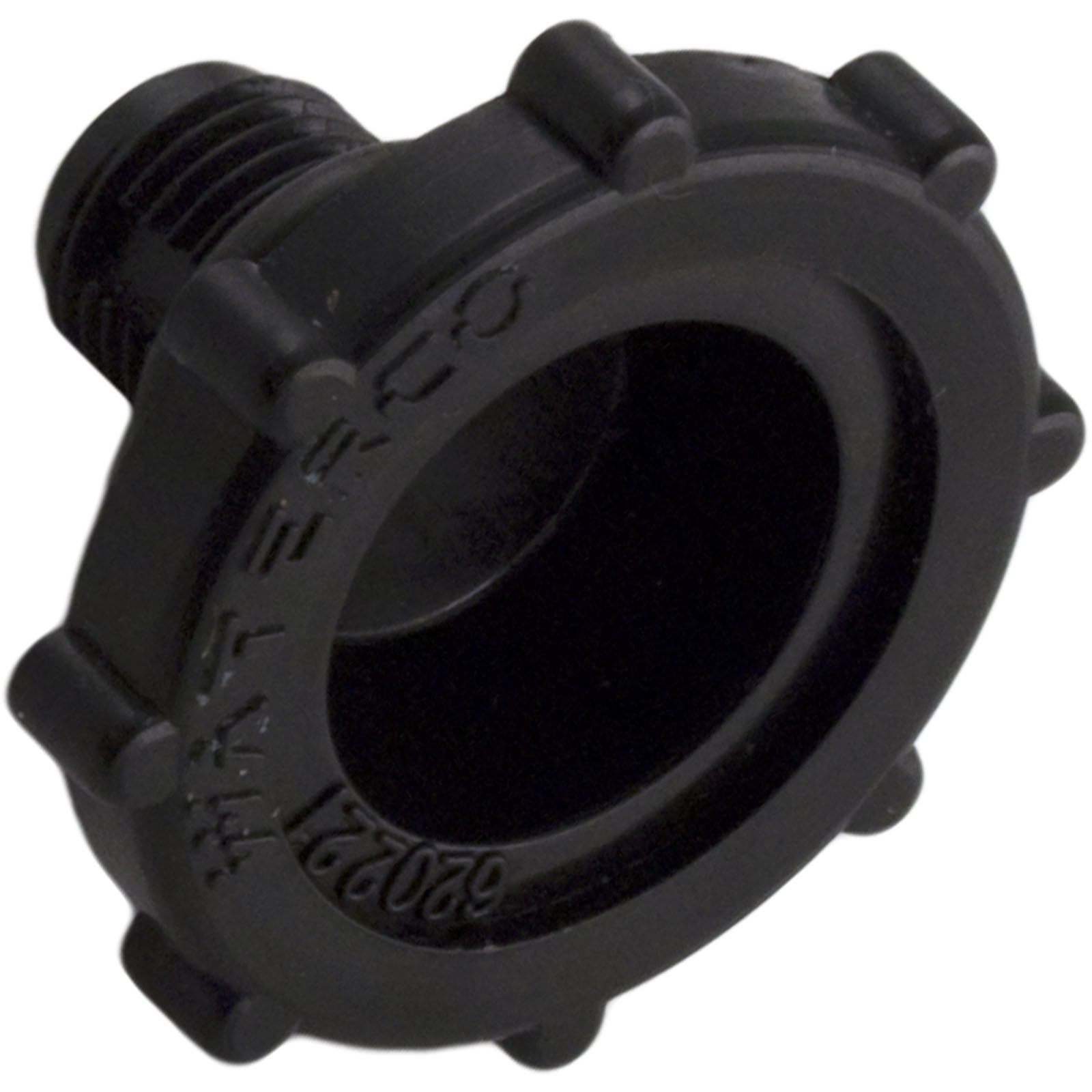

    620221 AIR RELEASE VALVE PLUG 35 1
    620232 FILTER LOCK RING 12 INCH 36 1
    6202321 HANDLE LOCK RING 37 2
