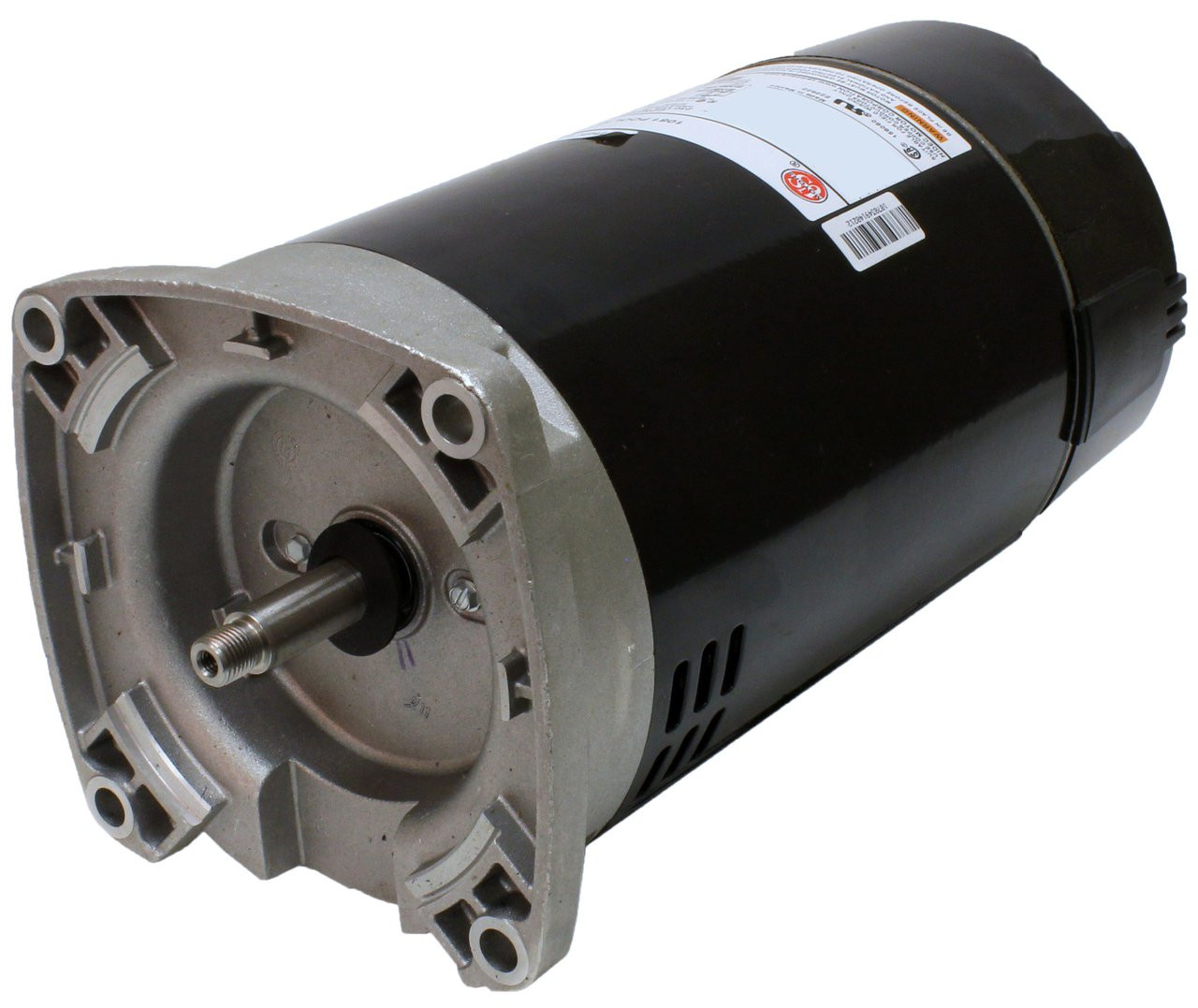

Replacement Motors, 56Y Frame, Square Flange, Three Phase

Features and Specifications:

  • Two Compartment, 1081, ODP, (Open - Drip Poof) Design
  • 303 Stainless Steel Shaft
  • Shaft Threads - 1/2-20 UNF-2A
  • Voltage Selection Device (on Dual Voltage models only)
  • Switchless Design
  • 6.5" Diameter Frame
  • Triple Bearing Protection
  • Continuous Duty
  • Sealed Ball Bearings
  • Class B Insulated
  • Thermally Protected
  • 50°C Ambient
    Know someone who might like this? - Please, feel free to " Tell A Friend "


    Item # Description/Size Qty Break Price Quantity
    EH755
    Motor, US Motor, 3.0hp, SQFL, Fullrate, 3 Phase, 208/230/460v, EH755
    		 1 $769.27
    EH995
    Motor: 5 HP, 1.15 SF, 3 phase, square flange, 56Y, 208-230/460 VAC, EH995
    		 1 $850.05
    EH637
    Motor, Nidec/USMtr, 2.0hp, 208-230/460v, 1-Spd, 56Yfr, SQFL, Full, EH637
    		 1 $710.18
    EH636
    Motor, US Motor, 1.5 Horsepower, C-Face, FullRate, 208-230v/460v, EH636
    		 1 $585.99

    Description

    Square Flange Pump Motors are the most common motor frame used today.

    The are U.S. MOTORS Genuine Pool and Spa pump replacement motors are 56Y frame, ODP design, Square Flange Motors.  These frames attach directly to the pump.
