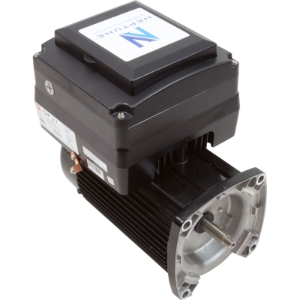

Motor, US Motor Neptune, 2.7thp, SQFL, Var-Spd, 230v, 48Y

  • The Neptune™ 2.7 Total Horsepower (THP) variable speed pool pump motor is a premium efficiency product that includes a fully integrated motor, control, and user interface (UI). The product gives you programming flexibility and exceptional speed range capability. It is also designed to communicate and operate with a variety of external system controls, in addition to the on-board User Interface.
    FEATURES:
  • Efficiency: 2.7THP 85% at 3450 RPM
  • Enclosure: Finned Aluminum enclosure providing a Water Ingress Protection level of IPX5 for long field life in outdoor environmental conditions
  • User Interface: Fully functional, easy to operate, capable of 90°, 180°, or 270° rotation
  • Rotation: Counter-clockwise (viewing motor shaft)
  • Low Temperature Monitor: Threshold temperature configurable in the UI
  • Fully Integrated: Designed for simple “Drop-In” installation with no complex wiring
  • Auxiliary Load Relay
  • Capable of communicating with specific pool control systems via MODBUS RTU
  • Capable of setting up to seven daily schedules
  • Adjustable priming time & speed
  • Menu keypad lockout
  • Designed for quiet operation
  • UL 1081 approved
Price: $983.21
    Know someone who might like this? - Please, feel free to " Tell A Friend "


    (To add this item to any one of your custom lists for easier shopping next time! You can manage your lists from your account home screen.)

    Description

    One does not need to replace the entire pool pump to gain all the energy savings associated with variable speed. Upgrade any pool by installing the U.S. MOTORS NPTQ270 Neptune Variable Speed TEFC 48Y Square Flange Motor 2.7THP 230V 50/60Hz. The Neptune line is a totally enclosed finned aluminum product which provides greater environmental protection than open drip proof motors which can lead to a longer field life. This professional-grade product has a premium efficient design that can help reduce utility expenses associated with operating a swimming pool pump by up to 80% when utilizing the preprogrammed settings on the onboard user interface.
