Item # ASB858
  • Motor, US Motor, 1-1/2 Hp 115/230v SQFL - ASB858
  • Motor, US Motor, 1-1/2 Hp 115/230v SQFL - ASB858
  • Motor, US Motor, 1-1/2 Hp 115/230v SQFL - ASB858
  • Motor, US Motor, 1-1/2 Hp 115/230v SQFL - ASB858
  • Motor, US Motor, 1-1/2 Hp 115/230v SQFL - ASB858
  • Motor, US Motor, 1-1/2 Hp 115/230v SQFL - ASB858

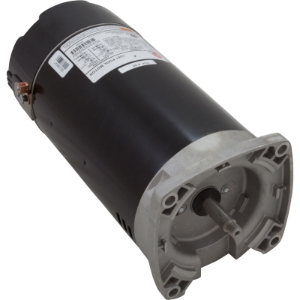

Motor, US Motor, 1-1/2 Hp 115/230v SQFL

  • Motor Type: Pool
  • Motor Amperage: 21.6A/10.8A
  • Voltage: 115v/230v
  • Phase: 1 Phase (1ph)
  • Frame Type: 56Y
  • Speed: 1 Speed (1-Spd)
  • Horsepower: 1.5hp
  • Total Horsepower: 1.5thp
  • Motor Shaft Type: Threaded
  • Motor Style: Square Flange
  • Capacitor On Top: No
  • Manufacturer: US-Motors

Replaces: 5238-101 , 623427 , EB858 , EMR-60-7208
Price: $510.00
    Know someone who might like this? - Please, feel free to " Tell A Friend "


    (To add this item to any one of your custom lists for easier shopping next time! You can manage your lists from your account home screen.)

    Description

    The U.S. MOTORS ASB858 is a 1 Speed Pool/Spa Pump 56Y ODP Square Flange Motor. It runs at 2.25THP, 208-230V, and 60Hz. Square Flange Pump Motors are the most common motor frame used today. These frames attach directly to the pump.
