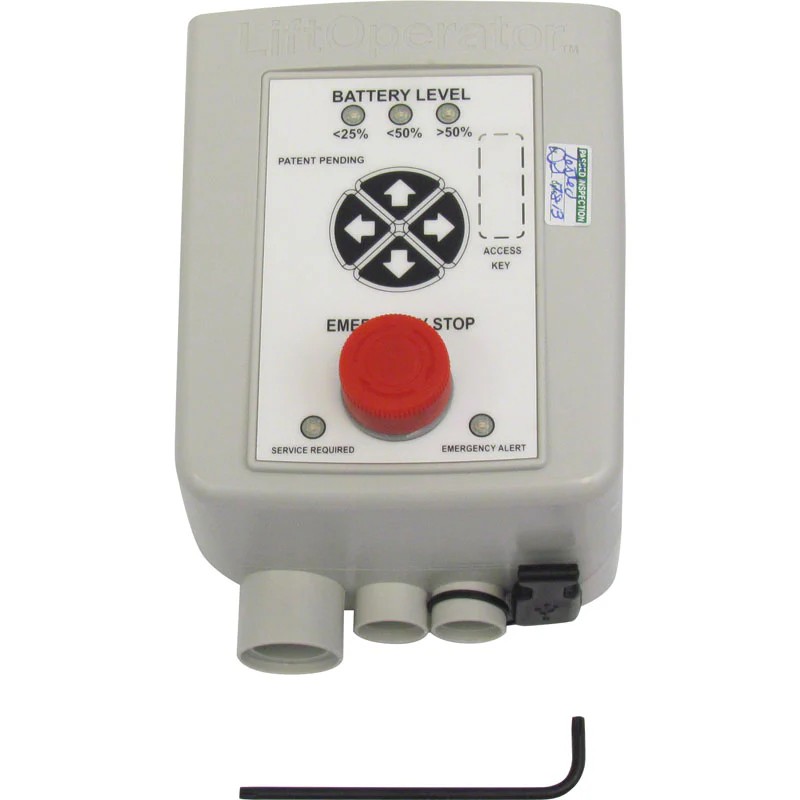

The LiftOperator – Pool Lift Control System with Rechargeable Battery Pack is designed to operate any
S.R. Smith lift product as well as many other actuated lift control systems. It can be used with the

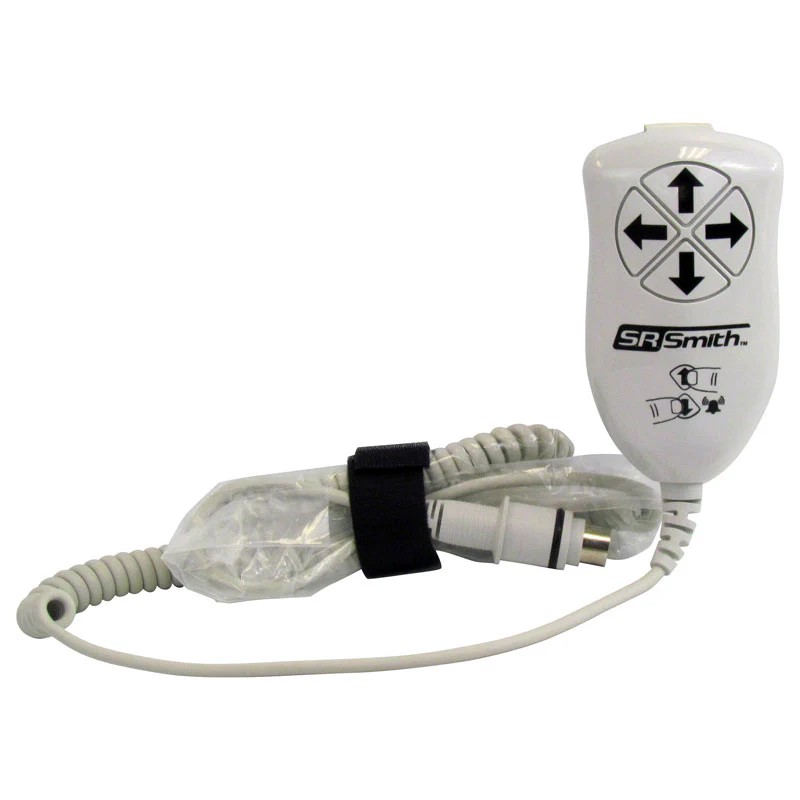

applicable 2 or 4 button hand held controls. It features a secondary control touch pad on the faceplate to
recall the seat to the deck when the seat and hand control are in the water, or in the event the primary
hand control fails. It also incorporates an emergency stop button that activates an audible alert. The
touchpad has LED indicators that indicate “Battery (Energy) Level”, “Emergency Alert” activation and
“Service Required” when maintenance” is required based on lift usage. The lift performance information -
i.e. up/down, left/right, battery charge cycles and to reset the “Service Required” LED are
viewed/completed via the USB port on the bottom of the control via a standard FAT-formatted USB mass
storage device (not included). The lift performance log information can be downloaded to a PC for viewing
and record keeping. The unit is constructed of high impact, UV resistant plastic, is water resistant and

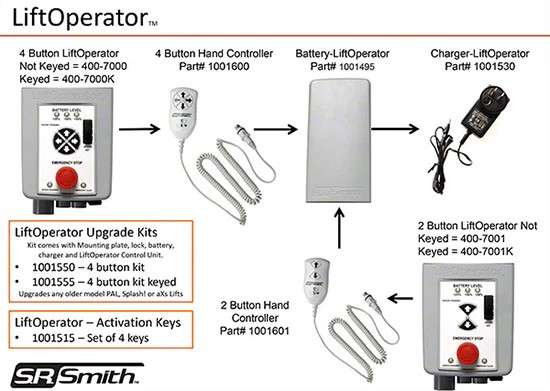

available in 2 and 4 button configurations. The removable battery pack is rechargeable via the included
battery charger. The included lock plate for the battery pack prevents unauthorized removal of the battery
pack with the use of padlock (not included). All circuit boards have been conformal coated to add an
extra layer of protection against moisture and corrosion
