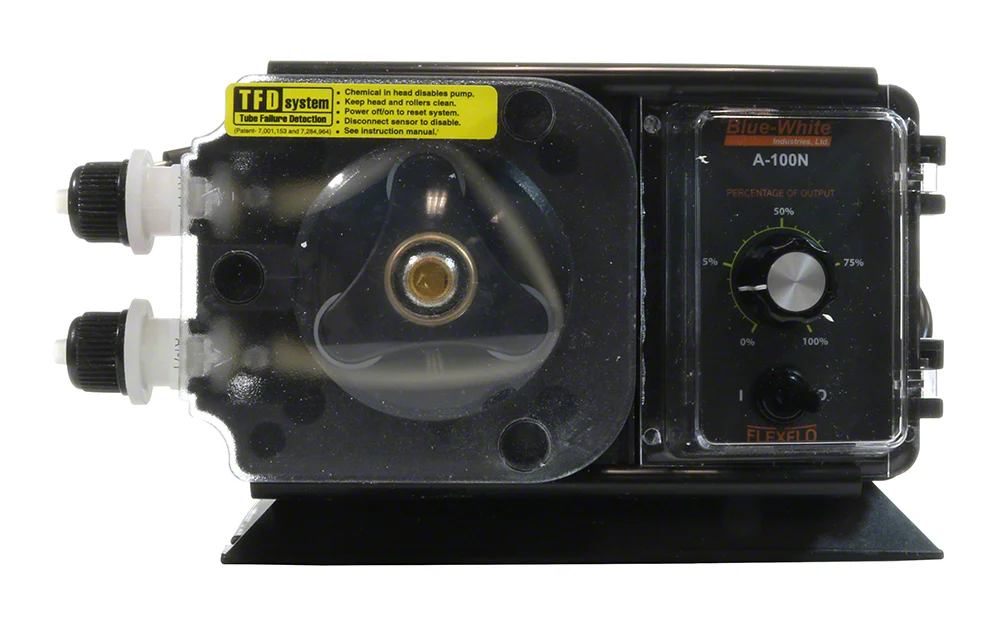

A-100NA Series – FlexFlo Peristaltic Metering Pump Series, Analog Timer

Item #

Features

Precise output control to 20:1 turndown by means of dial knob
60-second repeating time cycle
3 – 60 second adjustable feed (injection) time per cycle
Fixed-speed pump

Specifications

A-100NA (time interval control – 60 second cycle timer) – Swimming Pool
Max. working pressure: 100 psig (6.9 bar)
Max. fluid temperature: 130º F (54º C)
Max. ambient temperature: 14º to 110º F/ -10º to 43º C
Output adjustment range: 5-100%
Duty cycle: Continuous
Maximum viscosity: 5,000 Centipoise
Maximum suction lift: 30 ft. Water 0 psig
Maximum Solids: 50% by volume
Enclosure: NEMA 3R, (IP23)
Voltage (max amp):

115VAC/60Hz: 14 & 30 rpm = 1.37 amp; 45 & 60 rpm = 1.87 amp
220VAC/50Hz, 14 & 30 rpm = 0.68 amp; 45 & 60 rpm = 1.14 amp

Power Cord Plug Type:

115V60Hz = NEMA 5/15 (USA)
220V50Hz = CEE 7/VII (EUROPE)

Approximate shipping wt: 10 lb. (4.5 kg)

Know someone who might like this? - Please, feel free to " Tell A Friend "

Item #	Description/Size	Qty Break	Price
A1N10A-6T	Pump, Peristaltic, Blue White FlexFlo - A1N10A-6T / 16.0 GPD, 30 RPM,	1	$1,113.56
A1N10A-7T	Pump, Peristaltic, Blue White FlexFlo A1N10A-7T / 52.5 GPD, 30 RPM, 120VAC	1	$1,113.56
A1N20A-6T	Pump, Peristaltic, Blue White FlexFlo - A1N20A-6T 24.0 / GPD, 45 RPM, 120VAC	1	$1,113.56
A1N30A-7T	Pump, Peristaltic, Blue White FlexFlo - A1N30A-7T / 95.1 GPD, 60 RPM, 120VAC	1	$1,113.56

Description
Reviews (0)

FLEXFLO® Peristaltic Chemical Feed Pumps are designed for accurate and hassle-free delivery of liquid chlorine and acid to pools and smaller aquatics features. The A-100NA will feed up to 124.08 GPD/19.56 LPH with a max working pressure reaching 100 PSI/6.9 Bar. The precise output control adjustment allows for a wide range of feed rates. Other features include self-priming; a separate electronics compartment; individually packaged; FLEXFLO ships with tubing and accessories.
