Item # AST225
  • 2.25hp, 115/230v, 56JFr, C-Face, THP Rated Motor - AST225
  • 2.25hp, 115/230v, 56JFr, C-Face, THP Rated Motor - AST225
  • 2.25hp, 115/230v, 56JFr, C-Face, THP Rated Motor - AST225
  • 2.25hp, 115/230v, 56JFr, C-Face, THP Rated Motor - AST225
  • 2.25hp, 115/230v, 56JFr, C-Face, THP Rated Motor - AST225

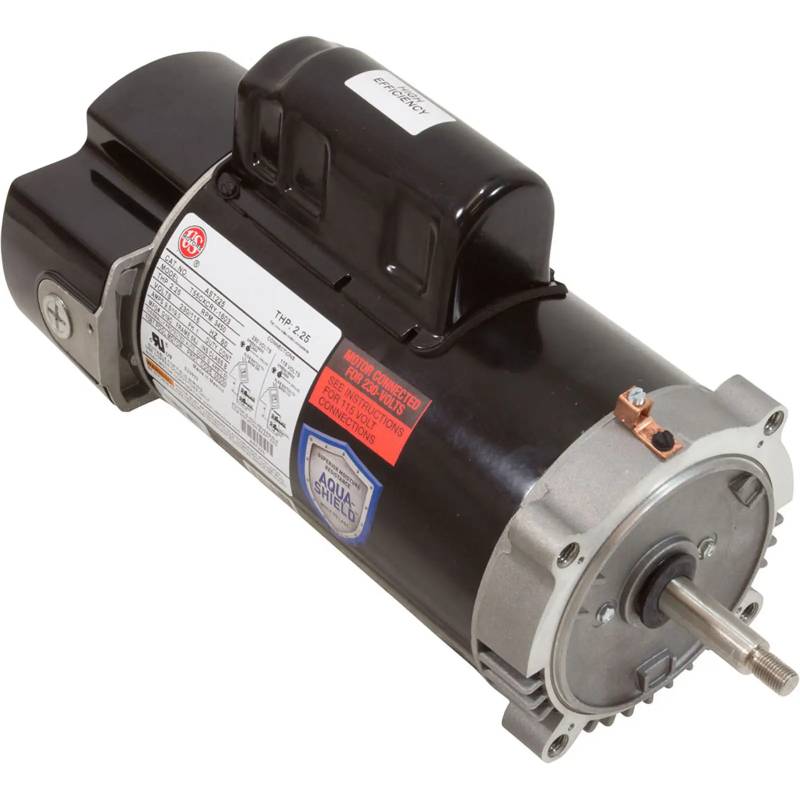

2.25hp, 115/230v, 56JFr, C-Face, THP Rated Motor

  • Motor Type: Pool
  • Motor Amperage: 19.0A/9.5A
  • Voltage: 115v/230v
  • Phase: 1 Phase (1ph)
  • Frame Type: 56J
  • Speed: 1 Speed (1-Spd)
  • Total Horsepower: 2.25thp
  • Motor Shaft Type: Threaded
  • Motor Style: C-Face
  • Manufacturer: Nidec-Motor-Corp/US-Motors

Replaces: 38659
Price: $500.38
    Know someone who might like this? - Please, feel free to " Tell A Friend "


    (To add this item to any one of your custom lists for easier shopping next time! You can manage your lists from your account home screen.)

    Description

    The U.S. MOTORS AST225 is an AQUA-SHIELD EZ48 Pool/Spa Pump 56J ODP C-Flange Motor. It runs at 2.25THP, 115/230V, and 60Hz. C-Flange Motors have threaded mounting holes in the face of the motor. They are typically used when a pump is to be overhung on the motor.
