Item # ASQ225

2.25 HP, 1.0SF, Premium Efficiency, 115/230 VAC, 1 phase

  • Motor Type: Pool
  • Motor Amperage: 19.0A/9.5A
  • Voltage: 115v/230v
  • Phase: 1 Phase (1ph)
  • Frame Type: 48Y
  • Speed: 1 Speed (1-Spd)
  • Horsepower: 1.5hp
  • Total Horsepower: 2.25thp
  • Motor Shaft Type: Threaded
  • Motor Style: Square Flange
  • Manufacturer: Nidec-Motor-Corp/US-Motors

Replaces: 38654 , AOS-60-5060 , EMR-60-6104 , EMR-60-6106 , EMR-60-6178 , ESQ1152 , EUSQ1202 , HSQ225 , SQ1152 , USQ1202
Price: $500.38
    Know someone who might like this? - Please, feel free to " Tell A Friend "


    (To add this item to any one of your custom lists for easier shopping next time! You can manage your lists from your account home screen.)

    Description

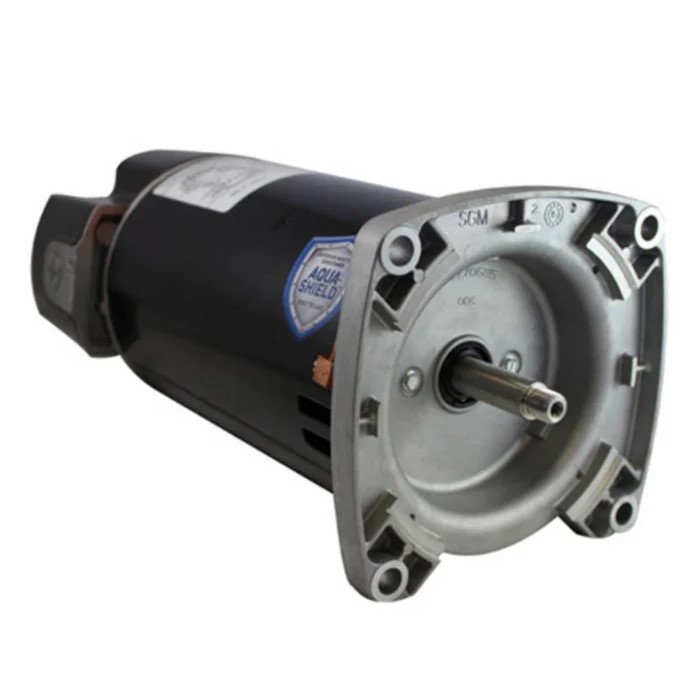

    The U.S. MOTORS ASQ225 is an AQUA-SHIELD EZ48 Pool/Spa Pump 48Y ODP Square Flange Motor. It runs at 2.25THP, 115/230V, and 60Hz. Square Flange Pump Motors are the most common motor frame used today. These frames attach directly to the pump.
