Item # SPX1580CH
  • 1-1/2HP PowerFlo LX High Performance Impeller - SPX1580CH
  • 1-1/2HP PowerFlo LX High Performance Impeller - SPX1580CH
  • 1-1/2HP PowerFlo LX High Performance Impeller - SPX1580CH

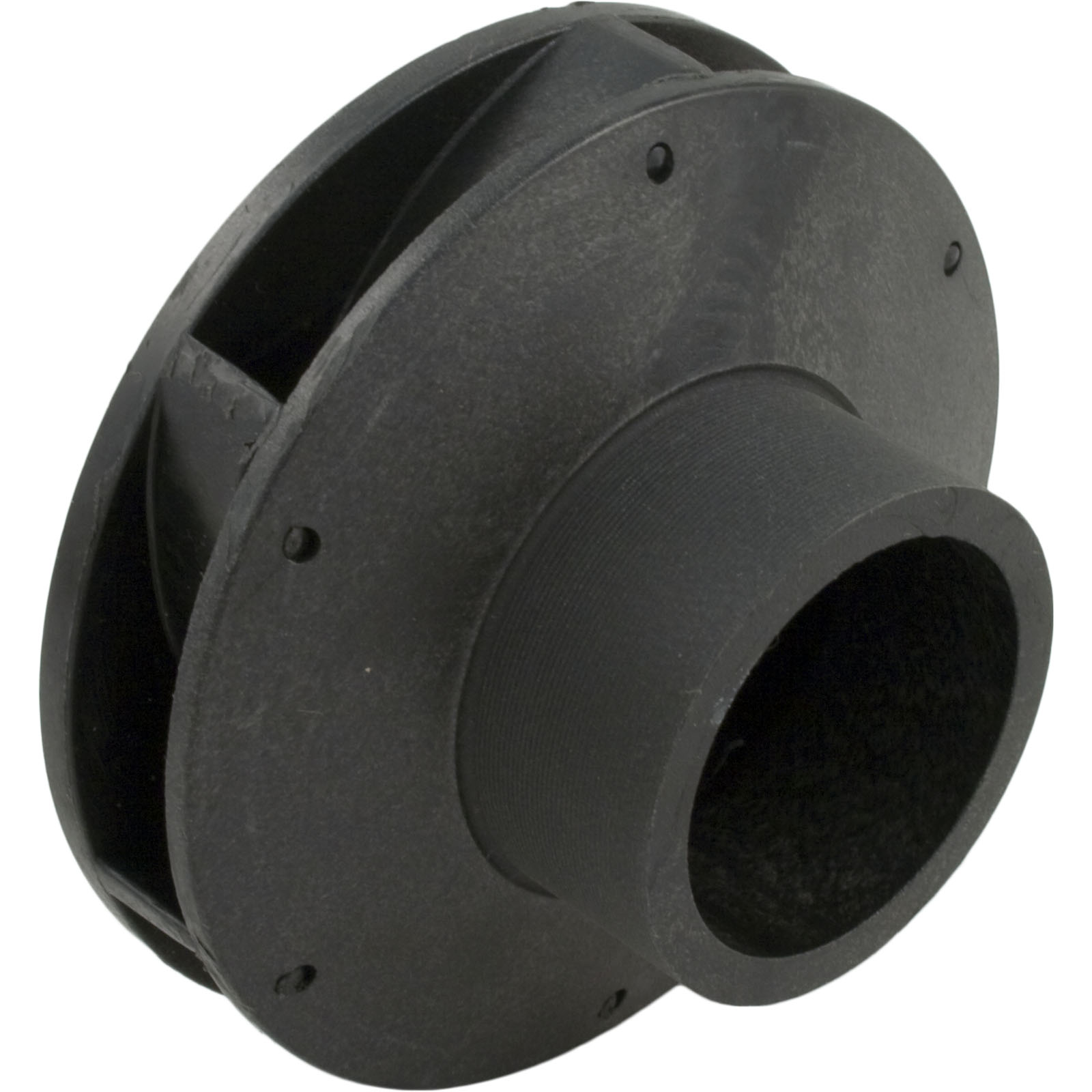

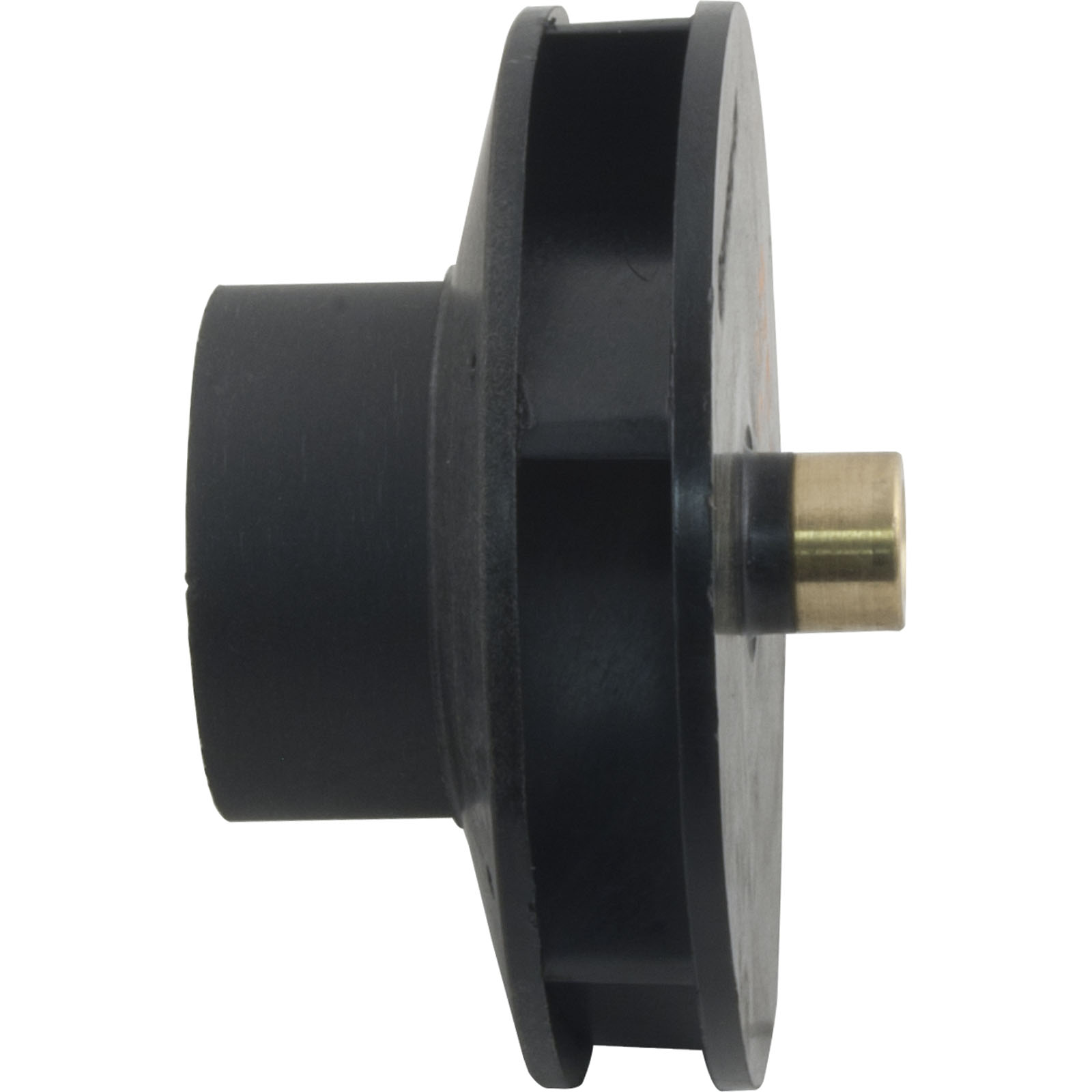

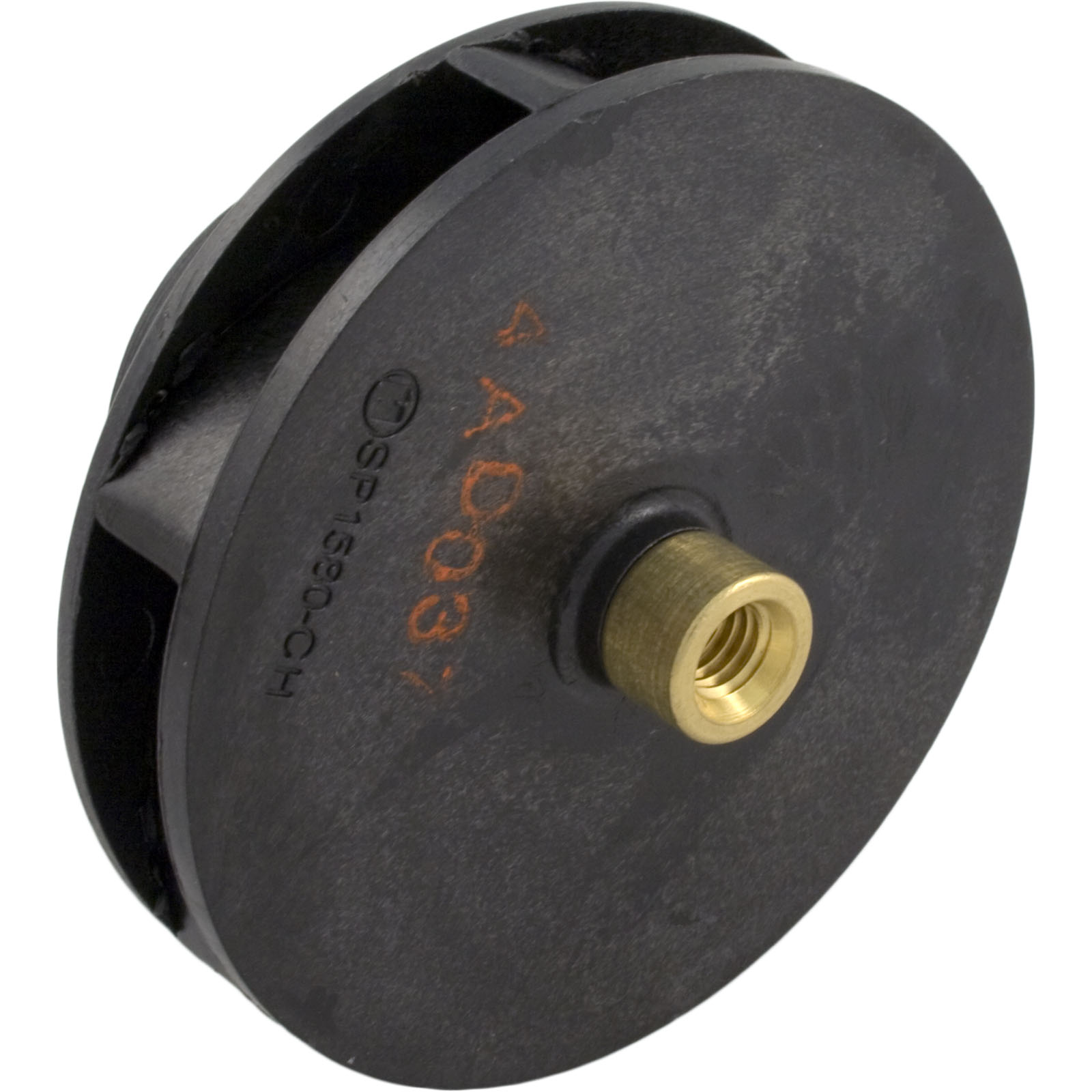

1-1/2HP PowerFlo LX High Performance Impeller

  • Impeller Type: Closed Face
  • Impeller Diameter: OD 3-3/4"
  • Vane Width: ID 1/2"
  • Eye Diameter: OD 1-7/8"
  • Eye Length: 13/16"
  • Impeller Width: OD 3/4"
  • Seal Seat Depth: n/a
  • Shaft Length: 1/2"
  • Shaft Diameter: OD 5/8"
  • Seal Seat Diameter: OD n/a
  • Manufacturer: Hayward
  • Pump Application: Power-Flo

Replaces: 5111-07H , 601269 , 610377039932 , 6540-973 , HAY-101-2083 , SP-1580-CH , SP1580CH
Price: $87.93
You Save: $17.37 (16.5%)
    Know someone who might like this? - Please, feel free to " Tell A Friend "


    (To add this item to any one of your custom lists for easier shopping next time! You can manage your lists from your account home screen.)

    Description

    Closed face impeller made for the SP1580 series pool/spa pump by Hayward. Rated at 1.5hp, it is used in a SP1580 wet end, and must be installed on a 1.5hp (or greater) thru bolt motor. Shaft seal sold separately
