Z-Flex - Stainless Steel Vent System - Elbows

Z-Vent Single and Double Wall Elbows

  • Made in America
  • Used when a direction change or offset is needed.
  • Available Single or Double Wall
  • Available in 15, 30, 45, and 90 degree elbow configurations
  • Vent material: AL29-4C stainless steel
  • Certification: Tested to meet or exceed Underwriters Laboratories (UL) spec UL1738 and ULS636
  • Approval: Cat II, III, IV venting
  • Limited Lifetime Warranty
    Know someone who might like this? - Please, feel free to " Tell A Friend "


    Item # Description/Size Qty Break Price Quantity
    2SVDE0415
    Z-Flex Z-Vent, elbow, 15 deg, double wall, 4" diameter, 2SVDE0415
    		 1 $167.52
    2SVDE0430
    Z-Flex Z-Vent, elbow, 30 deg, double wall, 4" diameter, 2SVDE0430
    		 1 $167.52

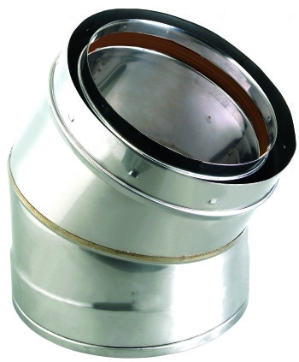

    2SVDE0445
    Z-Flex Z-Vent, elbow, 45 deg, double wall, 4" diameter, 2SVDE0445
    		 1 $100.31

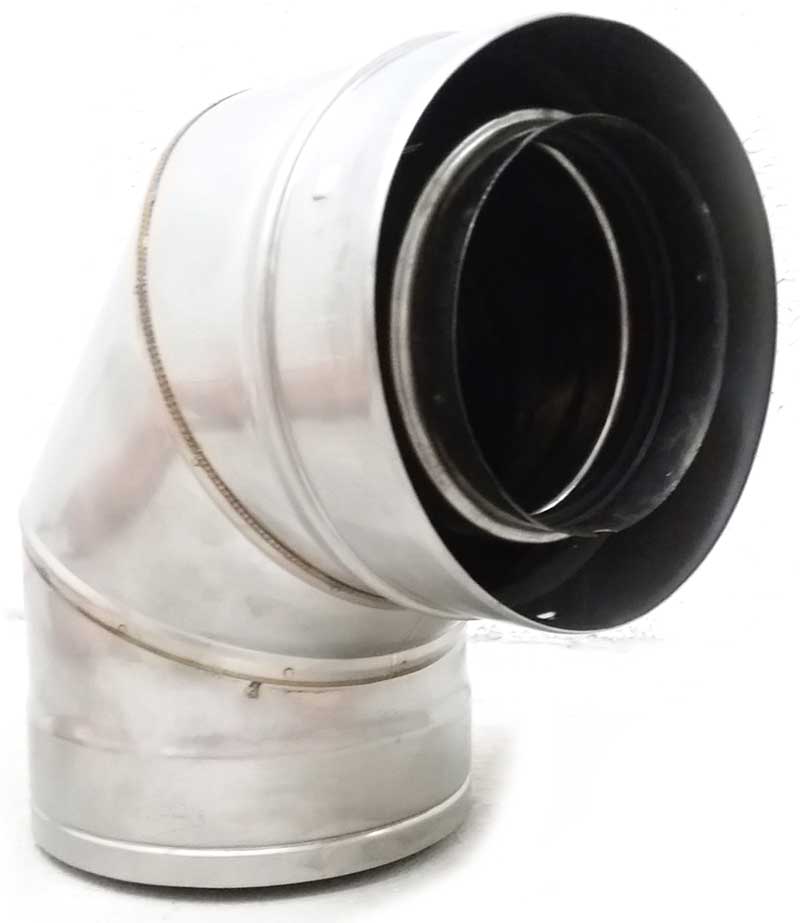

    2SVDE0490
    Z-Flex Z-Vent, elbow, 90 deg, double wall, 4" diameter, 2SVDE0490
    		 1 $215.35

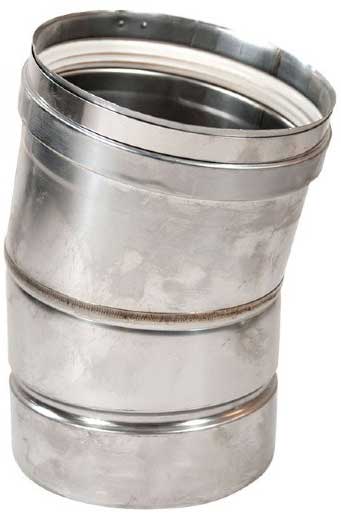

    2SVEEWC0415
    Z-Flex Z-Vent, elbow, 15 deg, single wall, 4" diameter, 2SVEEWC0415
    		 1 $83.75
    2SVEEWC0430
    Z-Flex Z-Vent, elbow, 30 deg, single wall, 4" diameter, 2SVEEWC0430
    		 1 $83.75
    2SVEEWCF0445
    Z-Flex Z-Vent, elbow, 45 deg, single wall, 4" diameter, 2SVEEWCF0445
    		 1 $83.75
    2SVEEWCF0490
    Z-Flex Z-Vent, elbow, 90 deg, single wall, 4" diameter, 2SVEEWCF0490
    		 1 $96.16

    Z-Flex Z-Vent Double Wall 15/30/45/90 Degree Elbow 4"
